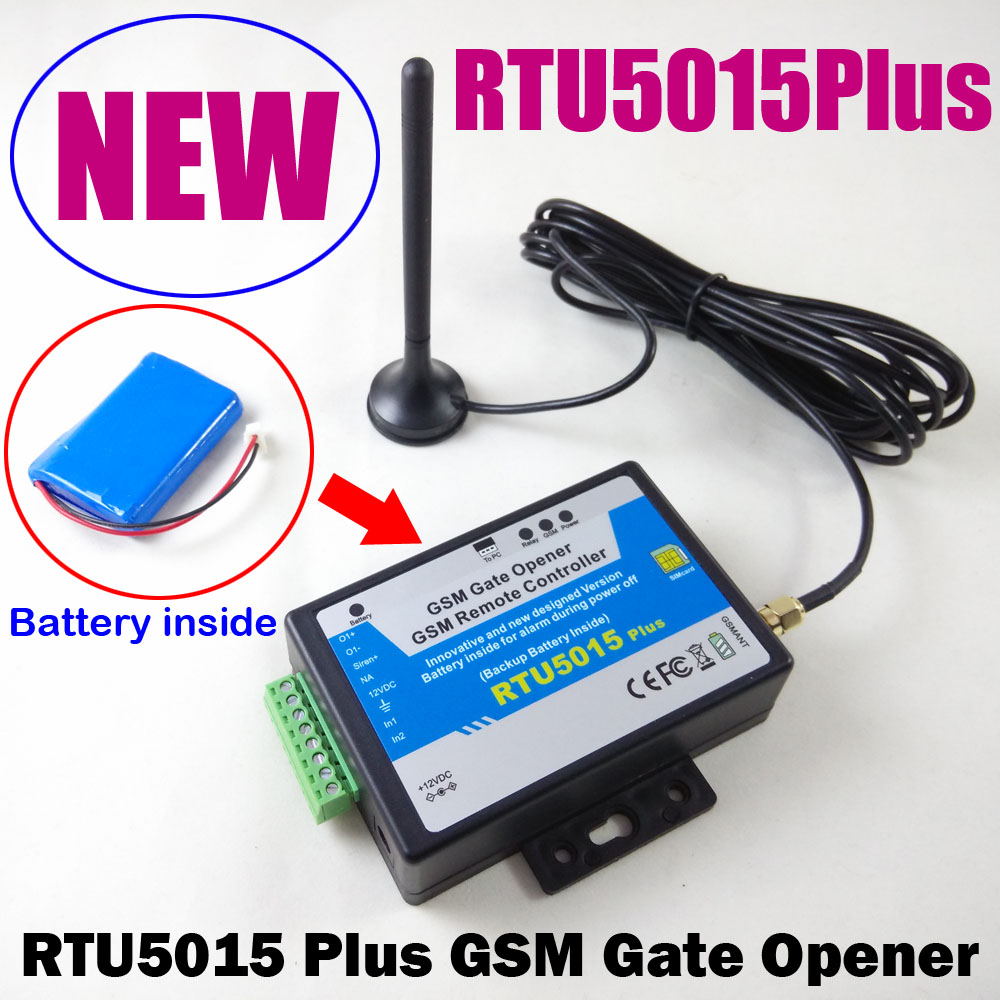

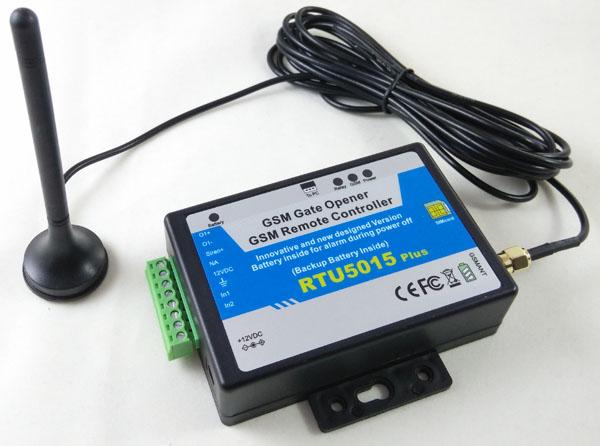

RTU5015 Plus Gsm gate opener,Rechageable backup battery inside

The GSM Gate Opener RTU5015Plus is Upgrated from RTU5015,bacup battery inside for power off alarm ,which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM Gate Opener RTU5015Plus can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.


GSM Gate, Barrier, Shutter, Garage Door, Door Opener, Door access, Controlling gates, Car parking systems.


Simple GSM remote controller for industrial projects.
For water pump,water tank,motor remote control,solar power remote monitor.

03 GSM alarm system for home or industrial security alarm.
For home or industrial projects alarm,burgur alarm,battery operated gsm alarm box.

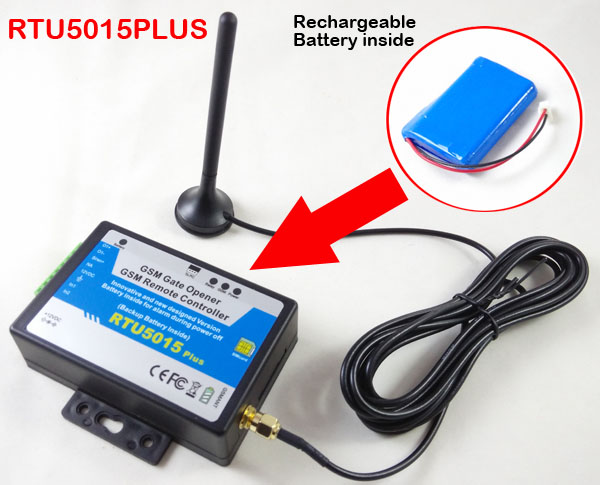

04 Rechargeable backup battery for power off alarm.
Upgraded from RTU5015 gsm gate opener and rechageable backup battery inside for power off alarm..

Quality Standards

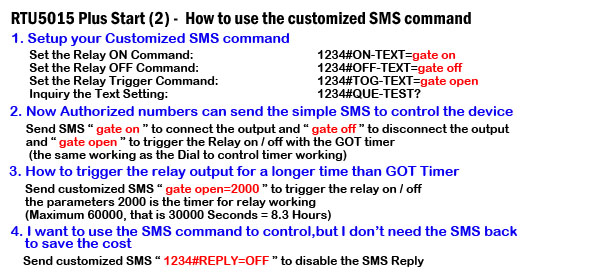

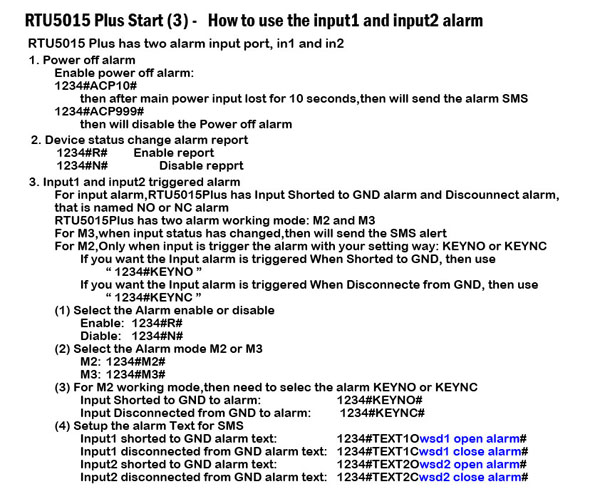

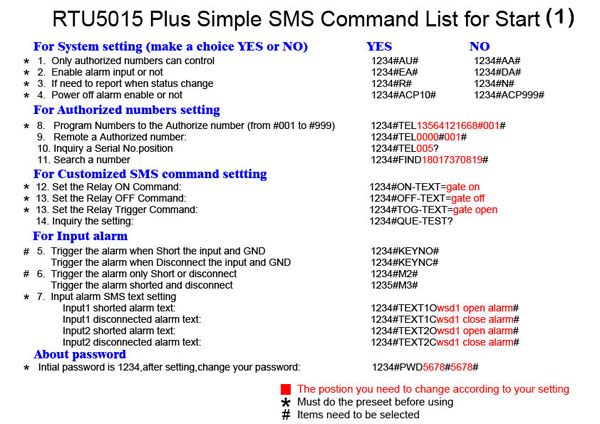

Following is the SMS command for RTU5015Plus to know RTU5015Plus more:

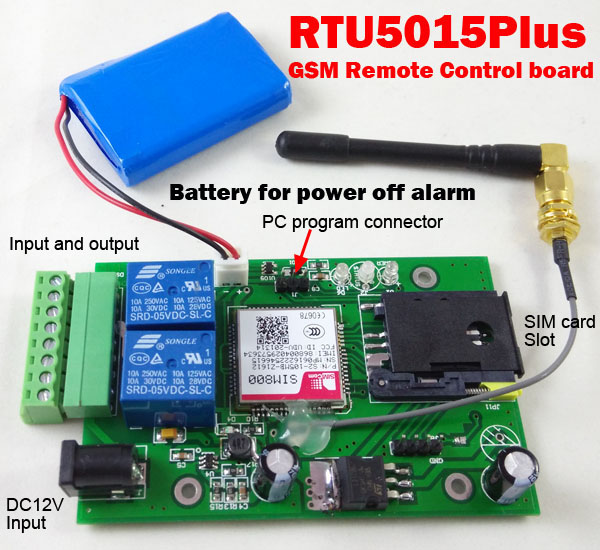

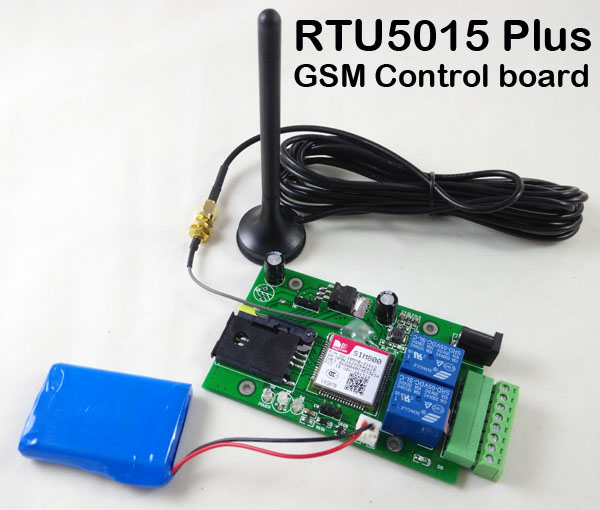

RTU5015 PLUS inside control board

Be noted about the Power off alarm:
1.Backup battery will enter into working after powered by normal Power supply around two minutes.
(This should be noted during test,so when you power on and power off quickly,that backup battery will not start to work)
2.When the Normal Power supply failure ,RTU5015Plus will send the Alarm SMS to TEL01 and TEL02 phone number,and then will turn off the GSM module to save the electricity.But it is still in the input alarm monitoring status.So if Input1 or Input2 alarm is triggered,it will start the GSM module immediately and send out the alarm SMS.
3.When power off,the relay will be trun off (OFF State),and when power supply back to normal,Relay status will back to the previous status before power off.
4.If the device is started without SIM card,it will trun off automatically after around 2 minutes.

  • How to turn off the backup battery power supply during shipping or in stock:
  • Only power the box with battery for more than 5 minutes (more than 5 minutes is important)
  • Take out the SIM card
  • Plug the DC12V power supply and Pull out quickly
  • If not power off ,then do the step 3 again
  • If still not powered off,then please do again from step 1.

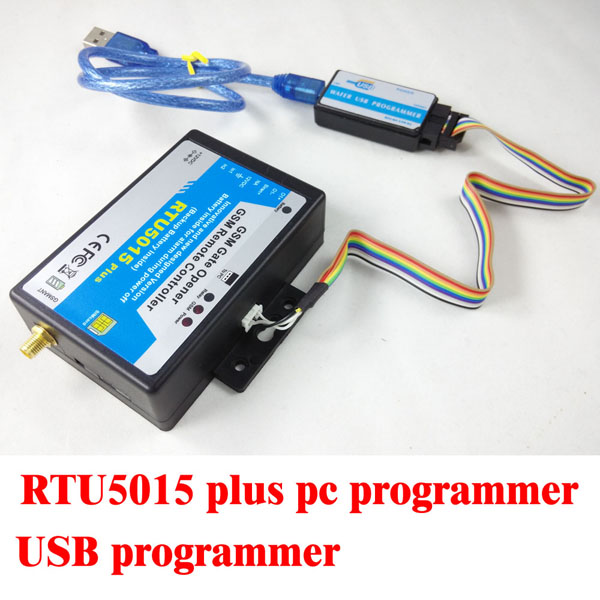

  • The following RTU5015Plus PC programmer with software is also optional for customer to order

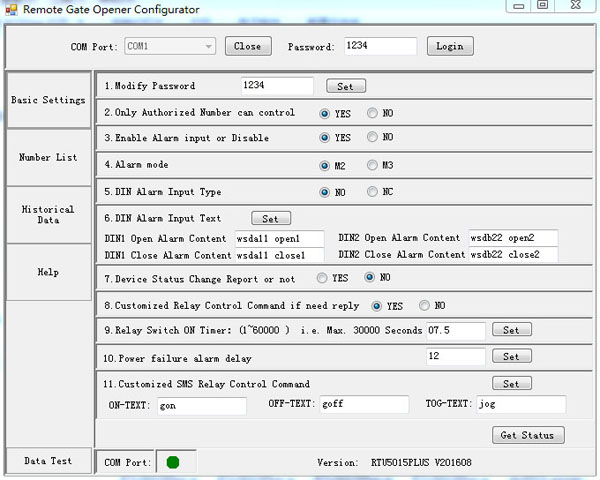

  • PC management software basic setting page:

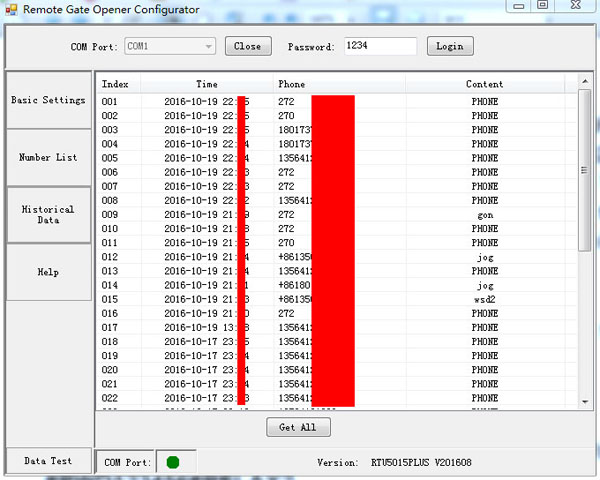

  • PC management software Log data list page:

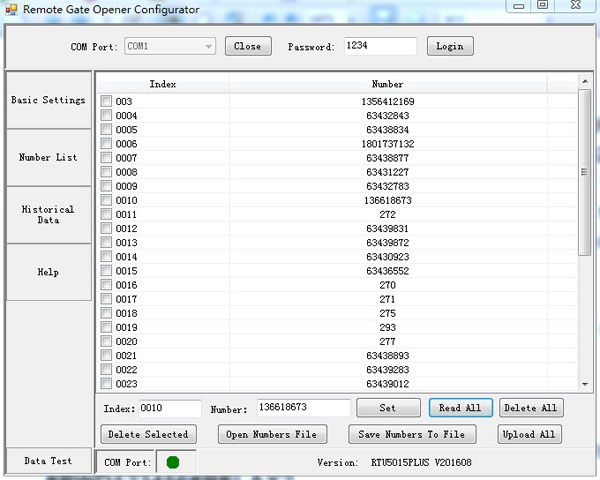

  • PC management software Numbers list page:

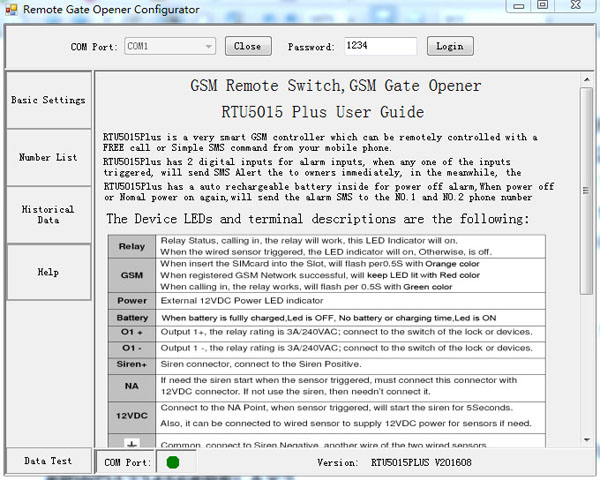

  • PC management software Help page:
  • Have the questions on the RTU5015 products ?

    Need to download more files of RTU5015 Serial products?

    Main features of RTU5015Plus:

    1. No call charges. the GSM Gate Opener rejects the call from authorized number then carrys out the turn ON/OFF action on the first 'ring';
    2. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
    3. Secure - Using caller ID for identification,unknown callers are ignored;
    4. Can be operated from anywhere, no distance limit;
    5. Add or remove users by Simple SMS Text command;
    6. Up to 99 authorized phone numbers can be configured;
    7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message you immediately;
    8. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
    9. The relay action will return a SMS confirmation to the owner, this function is editable by user;

    Specifications of the RTU5015Plus:

    DC Power supply:DC12V/2A
    Power consumption:12V input (50mA)
    Frequency range:Dual band 900/1800 MHz or 850/1900Mhz
    SIM Card:Supporting 3V SIM Card
    Antenna:50 Ω SMA Antenna interface
    Temperature range:-20-+60 °C
    Humidity range:Relative humidity 90% (condensation free)
    Relay Rating:3A/240VAC
    Exterior dimension:110mm*90mm*40mm
    Net Weight:600 g

    Standard Package list of RTU5015Plus:

    GSM Gate Opener (RTU5015Plus) X 1
    GSM Antenna X 1
    AC to DC Adaptor X1 (12VDC/2A)
    User Manual X 1


    GSM RTU5015Plus Files
